Heavy Duty Slotted Tooth Spring Pins

Made in the USA


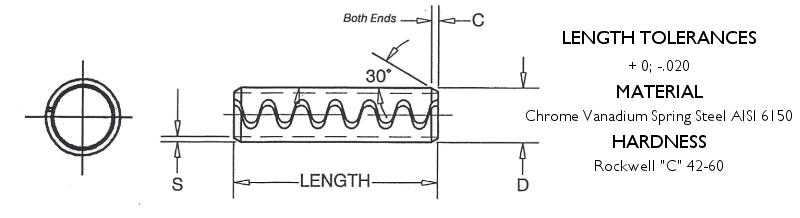

Diagram of a slotted Tooth Spring Pin

HEAVY DUTY SLOTTED TOOTH SPRING PIN SPECIFICATIONS

Nominal
Pin
Size
D B C S Reccomended
Hole Size
Min. Double Shear
Strength - Lb.
Diameter Chamfer
Diameter
Chamfer
Length
Stock
Thickness
Max. Min. Max. Max. Min. Nom. Max Min. Carbon Steel
AISI 6150
5/8  .625 .665 .650 .610 .070 .050 .118 .635 .625 36,880
3/4  .750 .790 .775 .735 .070 .050 .151 .760 .750 54,150

    FEATURES:

    • Slotted tooth design Increases roundness-and seating capacity.
    • Design of slot prevents Interlocking (nesting) of pins prior to Installation.
    • Pin design enhances ability for automatic assembly equipment.
    • Lowers installation costs. Can be used in either direction.
    • Excellent vibration resistance.
    • Designed for use in standard drilled holes - no reaming necessary.
    • Produced under IS09002 quality system

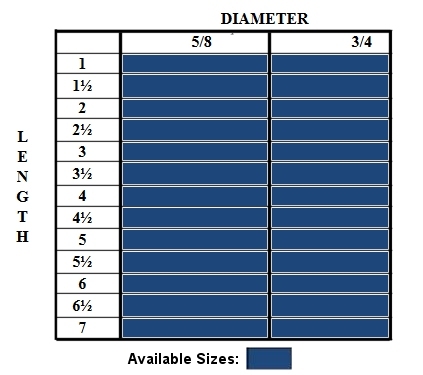

    AVAILABLE DIAMETER AND LENGTHS OF
    HEAVY DUTY SLOTTED TOOTH SPRING PINS

    Slotted Tooth Sizes


    NOTE:  Shorter and longer intermediate sizes are available, but
    may be subject to special order requirements

    NO Minimum Quantity Required On Standard Sizes

    WE CAN SUPPLY
    Metric Sizes      Special Sizes        Blanket Order Programs

    For more information, Click here to Contact Fastar Inc, the first choice in pins!
