Fastar Fasteners

Cotter Pins

Extended Prong / Chisel Point - Standard Inch Sizes

ASME B18.8.1

Made in the USA

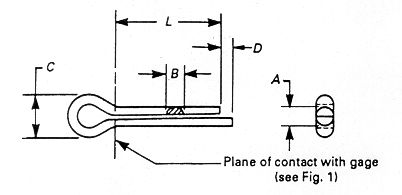

Diagram of Cotter Pin from Fastar Fasteners

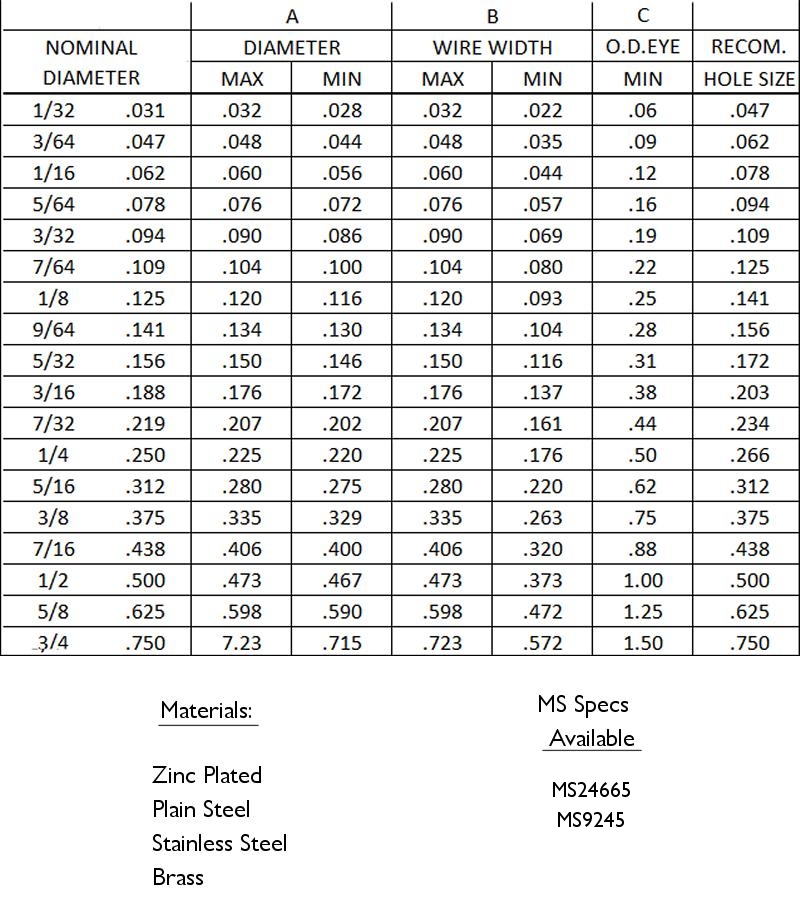

Cotter Pin SIze Chart from Fastar Fasteners







NOTE:  Shorter, Longer and Intermediate sizes are available, but may be subject to special order requirements

AVAILABLE SIZES:
`
We can Supply:
       Metric Sizes                         Special Sizes
                Special finishes
Blanket order programs


MARKETS SERVED
Commercial · Military · Automotive · Electronic · Medical · Aircraft


For more information, Click here to Contact Fastar Inc, the first choice in pins!
